MP SERIES

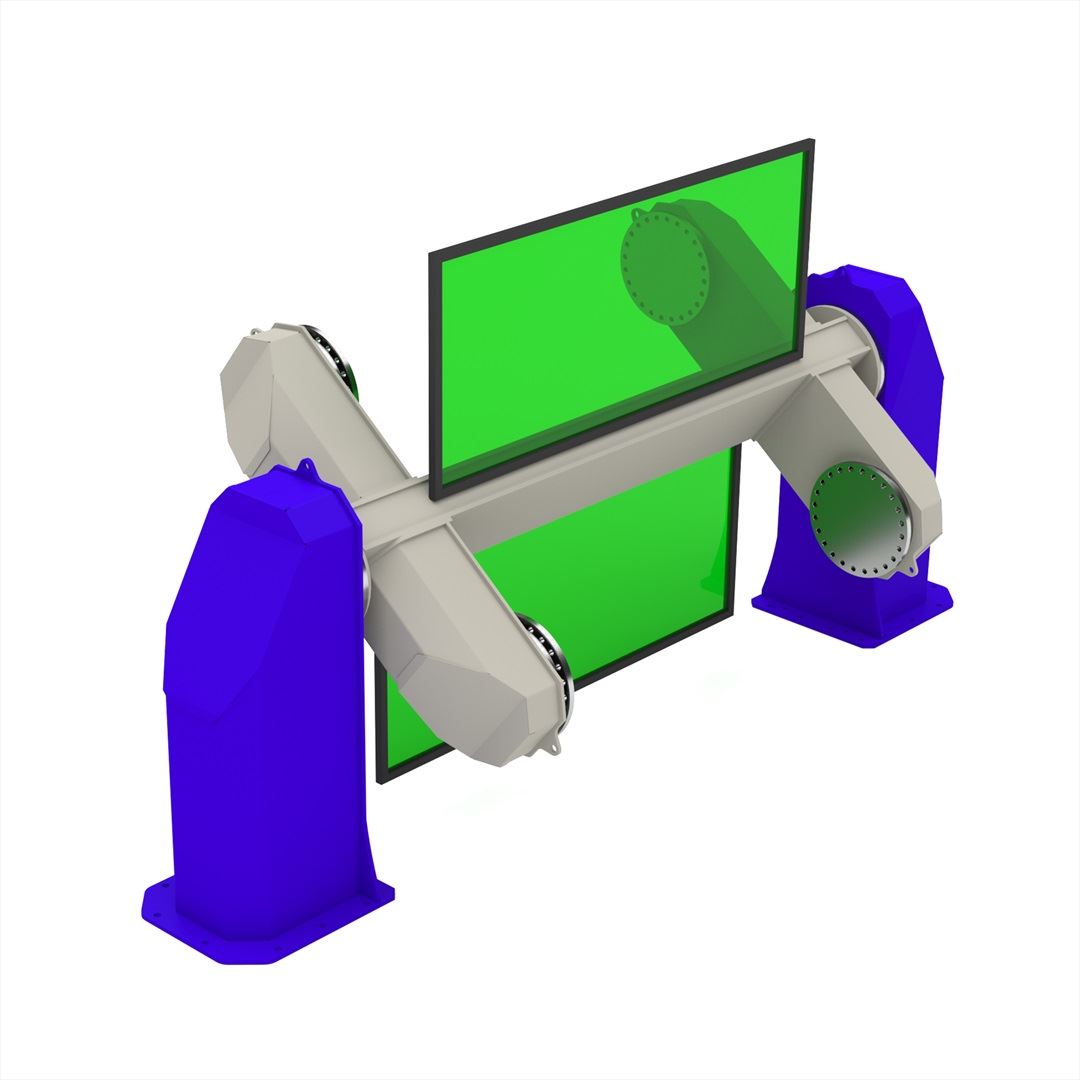

The MP Series positioner has a dual station solution where the robot works on one side and the operator loads and unloads on the other. The workpiece rotates around one axis during operation and all axes are reoriented when changing stations. There is a panel between the two stations to protect the operator from arcing.

The modular design, low and heavy duty moving parts as well as minimum maintenance demands make the positioner easy to service. It provides fast changeover and high efficiency.

The MP Series is compact and flexible, and can move with high precision on 3 axes synchronized with the robot.
